Histology Photomicrographs

Human Anatomy and Physiology (BIOL& 241L-242L)
Karen Hart, Peninsula College

Skin: Skin and hypodermis

Slide: Scalp; sec HI 1-23

Microscope at 40X

The skin consists of two layers, the epidermis and the dermis. Below the skin is a layer of areolar/adipose tissue called the hypodermis (or subcutaneous layer).

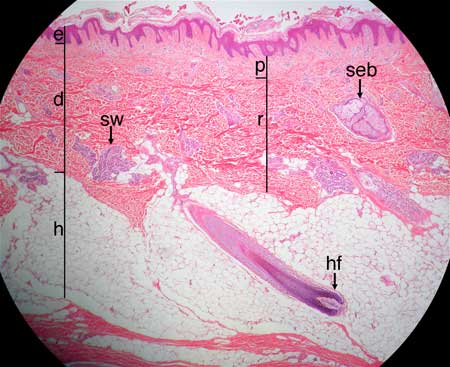

The 40X image shows:

e = epidermis

d = dermis

h = hypodermis

sw = sweat gland

seb = sebaceous gland

hf = hair follicle

p = papillary layer of dermis

r = reticular layer of dermis

Slide: Scalp; sec HI 1-23

Microscope at 40X

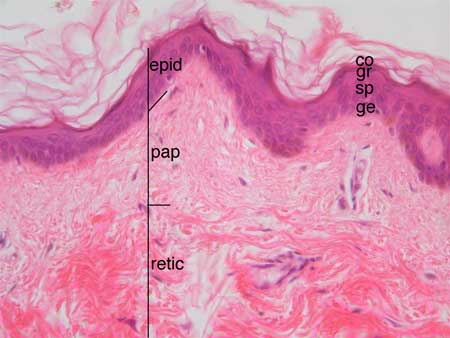

The 400X image shows the epidermis and the outer part of the dermis.

The dermis has two layers, a thinner outer layer called the papillary layer and a thicker deep layer called the reticular layer. The papillary layer has fine collagen fibers. The reticular layer has much thicker bundles of collagen.

epid = epidermis

pap = papillary layer of dermis

retic = reticular layer of dermis



Layers of the epidermis:

ge = stratum germinativum

sp = stratum spinosum

gr = stratum granulosum

co = stratum corneum

Slide: Scalp; sec HI 1-23

Microscope at 400X

Slide: Scalp; sec HI 1-23

Microscope at 400X
